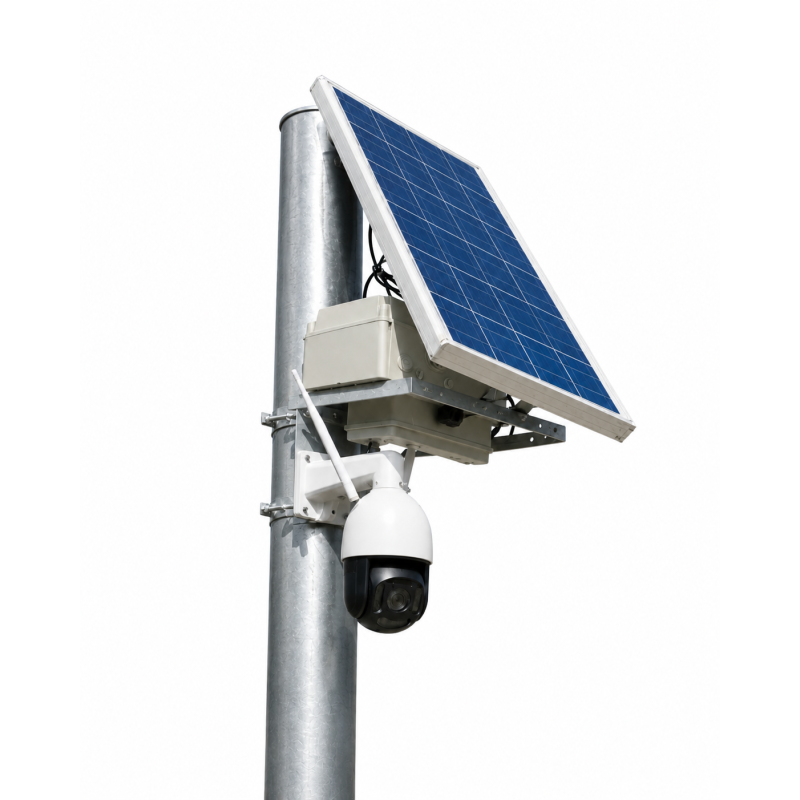

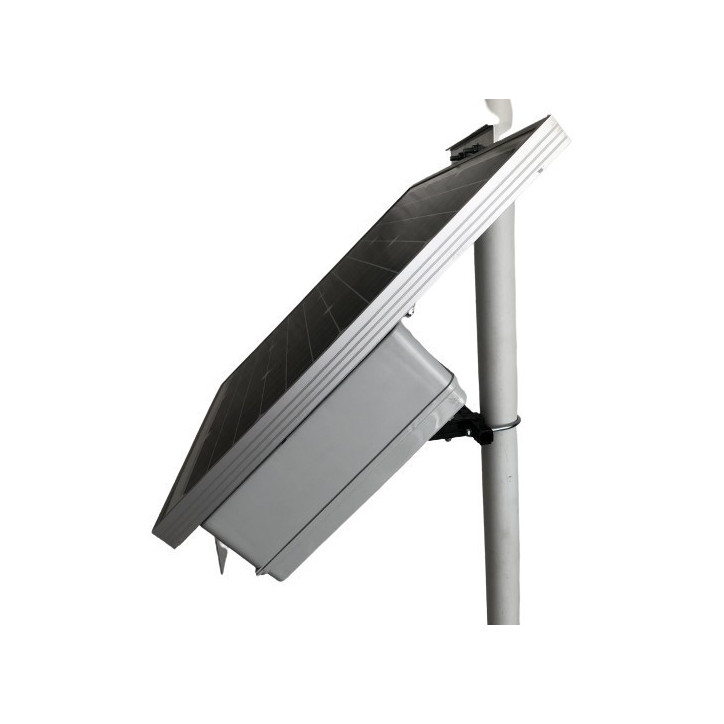

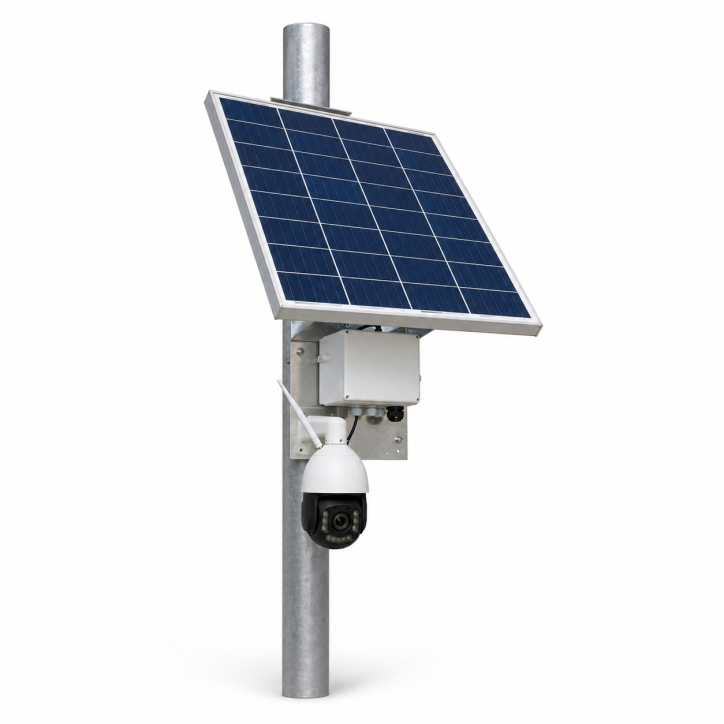

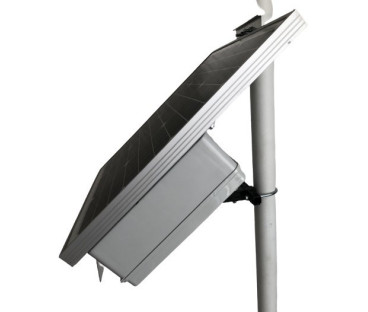

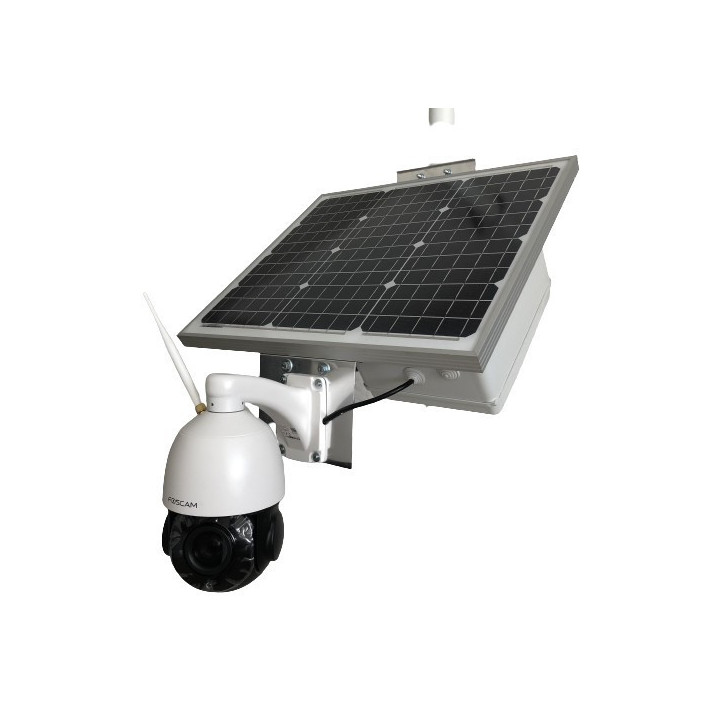

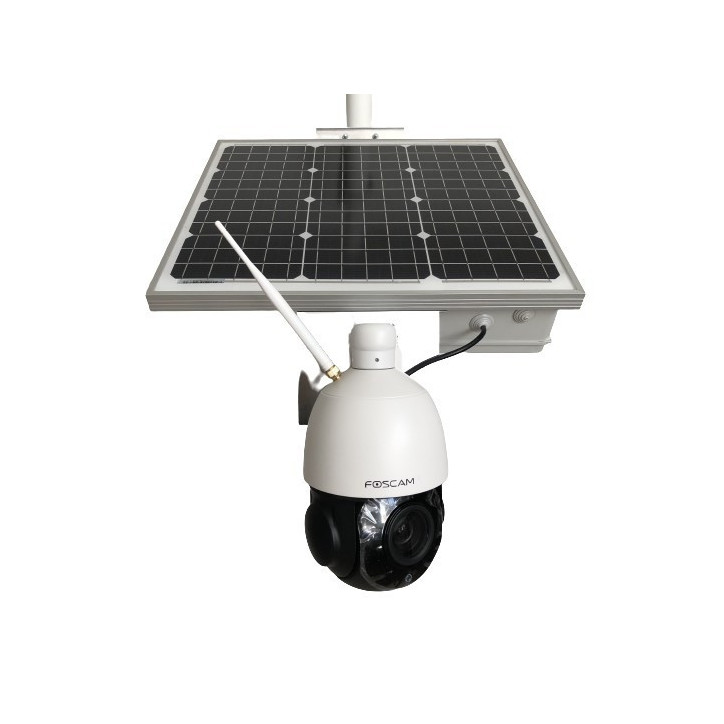

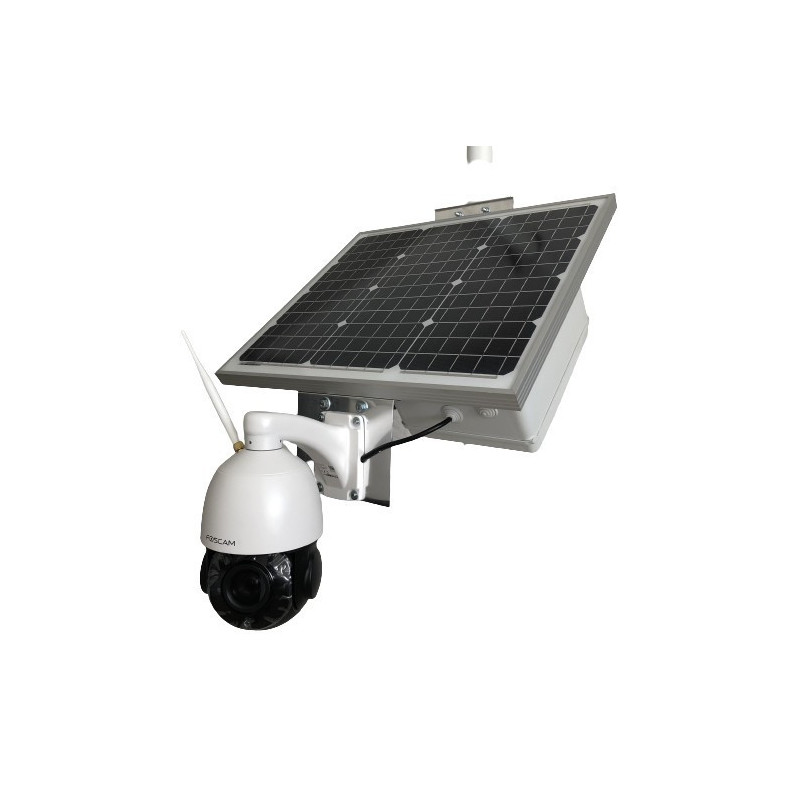

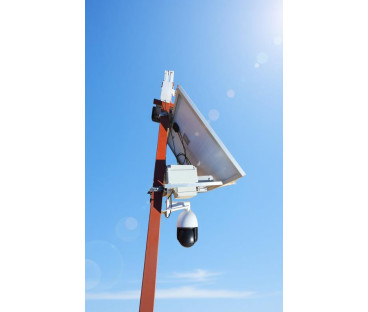

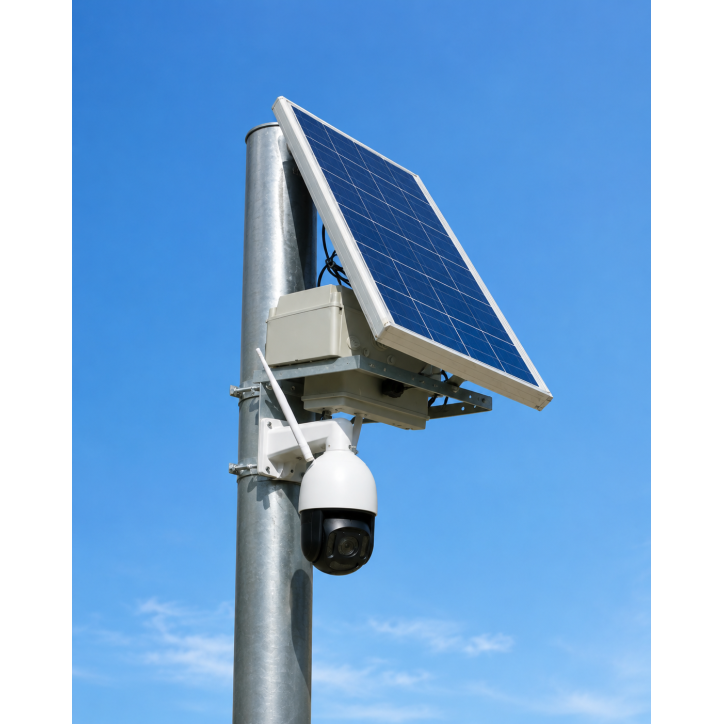

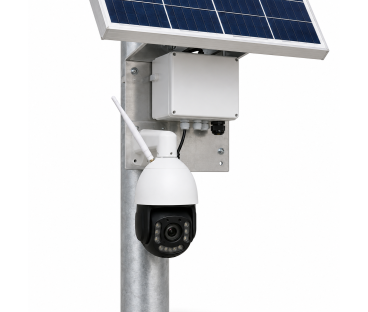

SPECIFICATIONS – Solar Mount

Pole mount for solar panel: Aluminium alloy brackets with stainless steel hardware

Setting angle: 45° for capturing the correct angle for the sun

Mounting pole (to be supplied by installer/customer for combination of solar panels and battery/control box): recommended minimum - 75mm x 3mm steel for 3metre above ground

NOTE: POLE is NOT INCLUDED in the kit and dimension are only a guideline. It is the responsibility of the client to ensure that correct erection procedure for the pole is followed.

Wind load: 80Kkm/Hr

Hail loading: 1.1Kn/m ²

Assembled weight (includes 1 x 80W panel): 7kg

Attention: Edges may be sharp

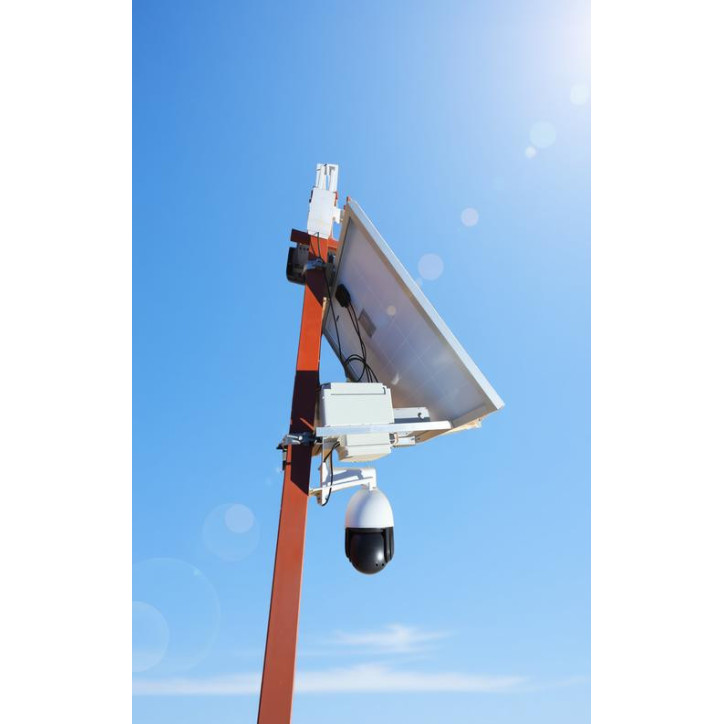

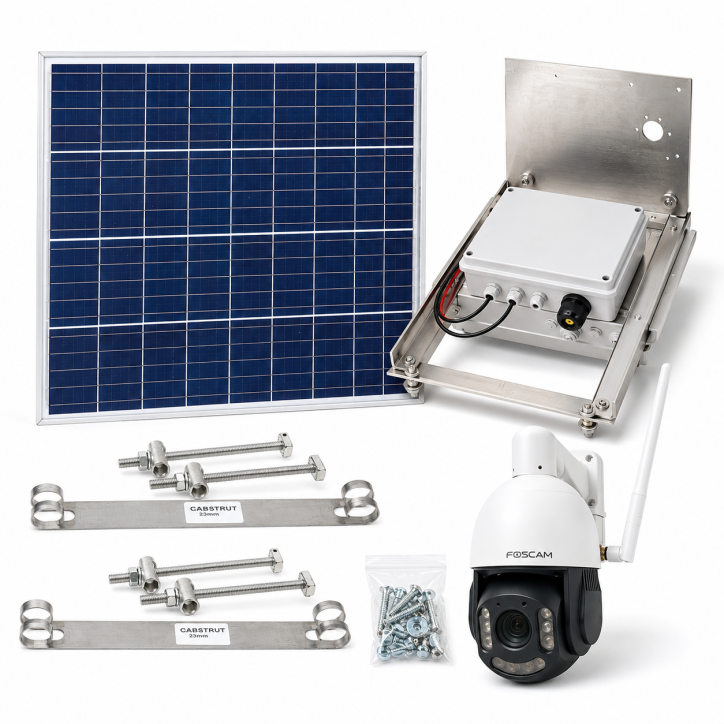

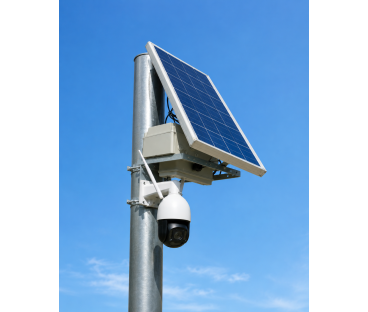

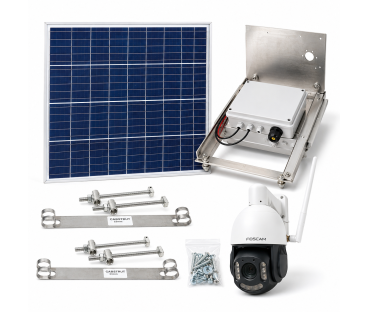

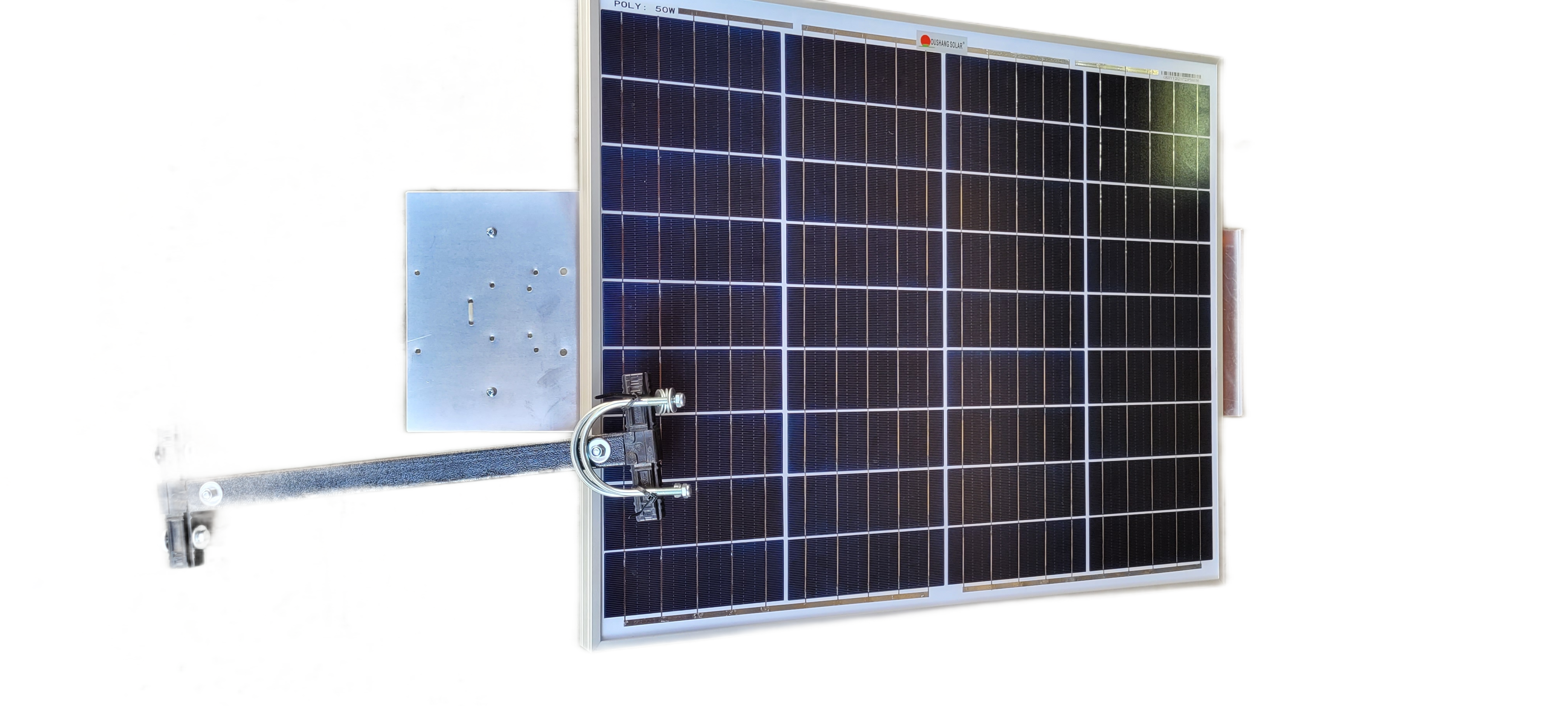

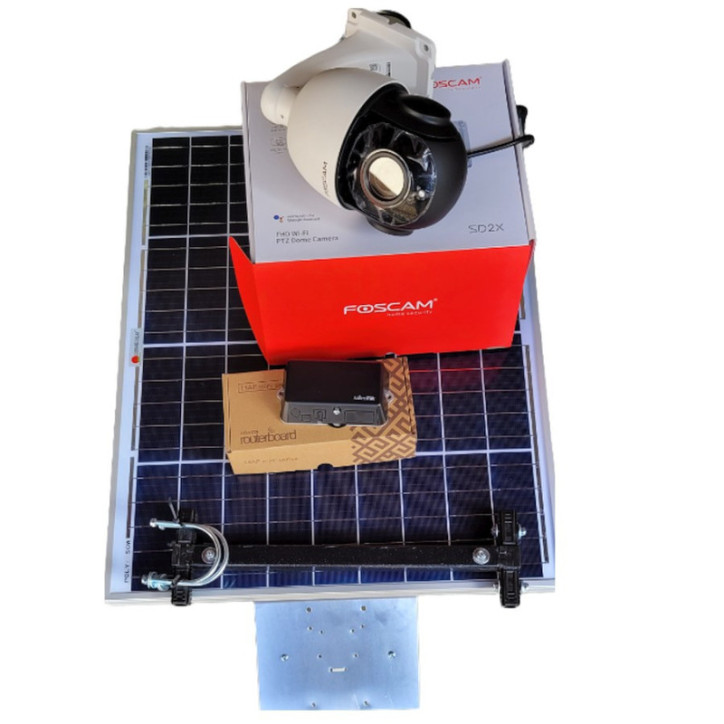

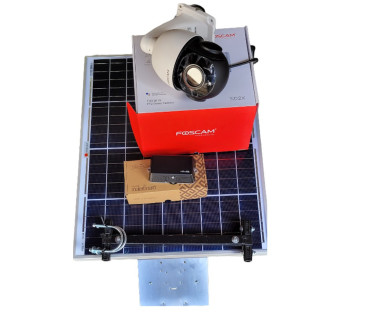

Solar panel mount set comes with: 1 upper bracket, 1 lower bracket, 2 x U-bolts (straps), 2 x M6 hex-head bolts, 4 x washers, 2 x M6 nyloc nuts, 2 x M6 hex-head bolts for solar panel, 4 x flat washers for solar panel, 2 x nyloc nuts for solar panel.

Installation: To the greatest extent possible, the installation site should allow unshaded exposure to the sun throughout daylight hours.

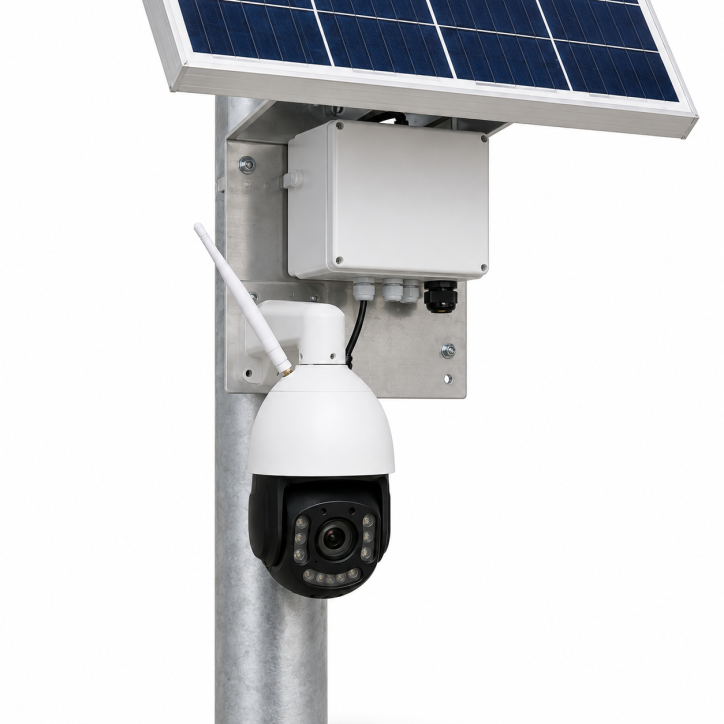

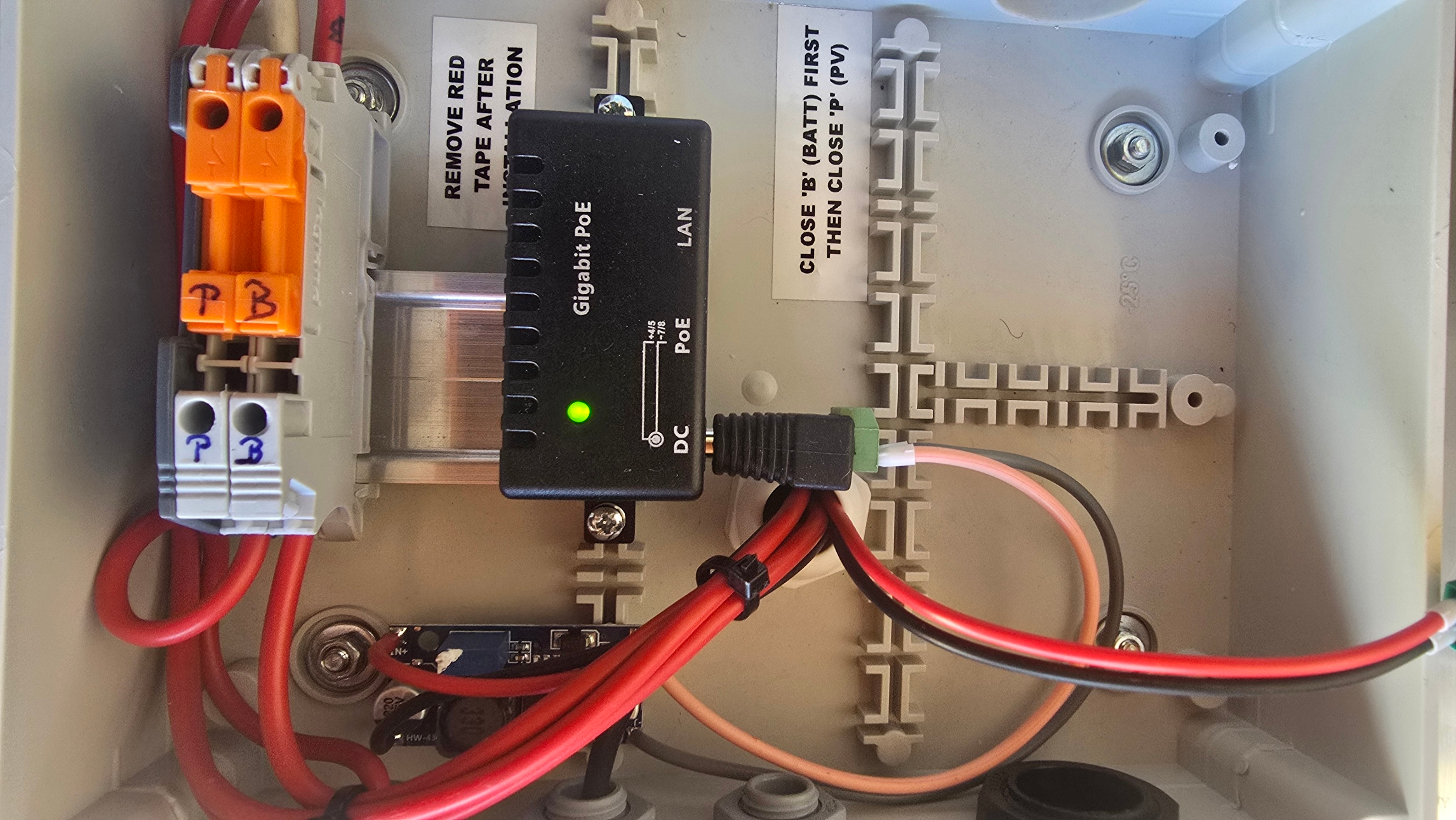

SPECIFICATIONS – Control and Battery Cabinet

Depending upon the customer requirement, but our standard is a battery pack 25Ah.

Solar charging is by means of a Monocrystalline Solar panel

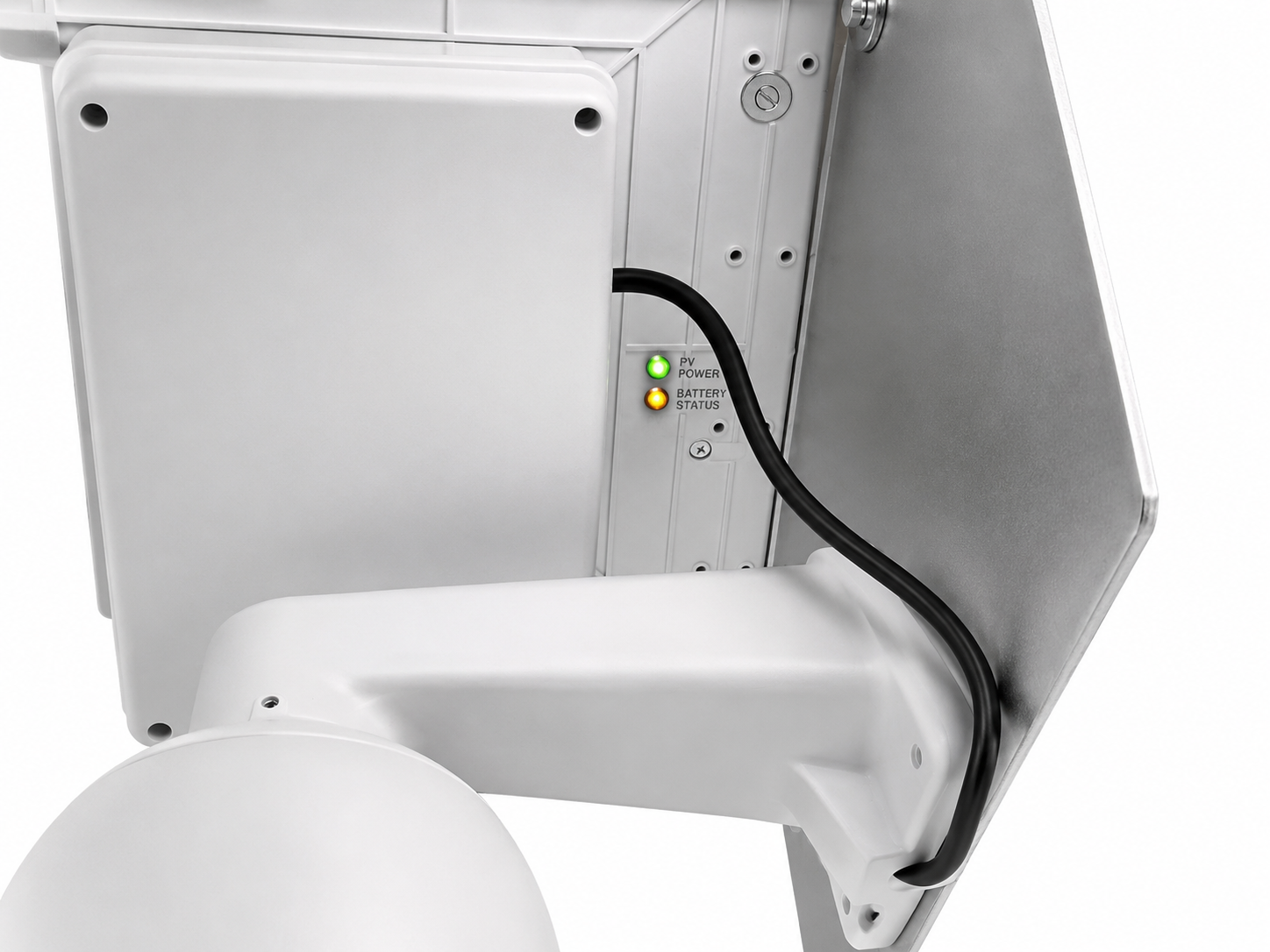

The solid state controller integrates all aspects required for optimal operation of the unit with:

• Solar charge controller specifically for LiFepo4 cells with BMS on 25Ah unit
• Regulated outputs for a camera and a communication device
• Unregulated output for LTE router

Cabinet: Polyester / Polycarb 300 x 250 x 130mm

Pole mount bracket: U-clamp / strap top and bottom

Batteries: 1 x 12V 25Ah LiFeP04 batt pack

Solar Charge Controller: 10A

Camera Voltage Protector: 2A

Connectivity

An 4G GSM modem runs on any mobile network allowing you to connect to the system from virtually anywhere – as long as the system is in an area with good network coverage. Speeds of are location dependent.

(Sim Card– supplied by customer depending on your service provider)

Kit comes fitted with a Mikrotik LtAP Mini LTE Router. ( or similar depending on availability)

Power Connectors for: Camera; Router; Solar panels

Total Weight of control and battery cabinet: 8kg

Cabinet mounting set comes with:

1 upper bracket, 1 lower bracket, 2 x U-bolts (straps),

4 x M6 hex-head bolts, 8 x washers, 4 x M6 nyloc nuts
